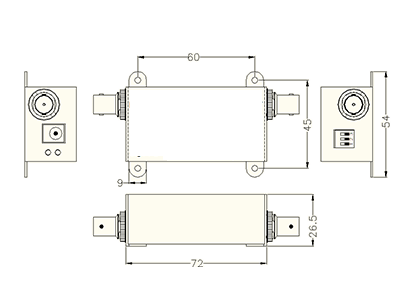

HD-SDI links Extender

Extend HD-SDI signal (VLC on)
Integrated cable equalizer for long distance video transmission
Re-clocker to resynchronize the signal—bring it back to its original condition.
Cable Driver to retransmit the signal with its original characteristics restored.
Support Coaxial-link(C-LINK),
able to power out/in by coaxial cable.
allow transmitting Ctrl signal(UCC) by coaxial cable.

Function	Spec.
HD-SDI in/out interface	Connectors :BNC 75Ω Cable Impedance:75Ω ± 3Ω Data Throughput:270Mbps – 1.485Gbps (SMPTE 292M)
Aux port	Connector :RJ45 (Cat 3) type Pin definition: RS-485 in (Pair 1 white/green) RS-485 out (Pair 2 white/orange) PWR in/out +24V (Pair 3 white blue)/ Gnd (Pair 4 white/brown)
Power Supply Input  (Head End input)	Power in via RJ45(Aux port) 9 ~24V DC, rated current 0.5 – 2A
Power Supply Output (nearest Camera Side output ,  without PoC camera )	Power out via RJ45(Aux port) VIN @ Head End -1V -Coax DC drop (varies with cable type/length) DC Feed via Coax VIN @ Head End -1V -Coax DC per hop (varies with cable type/length) Maximum 400 mA – 30 mA per
Environmental repeater	Operating Temperature:0 to 50C degree C Relative humidity:Up to 85% non-condensing Storage Temperature:-200C to 700C

Order info.
Model:MHD-61S2S (EX-SDI (VLC on))
