MHD-63MG20SH-EX-DICR-ITS

  • Feature
  • Specification
  • Remark

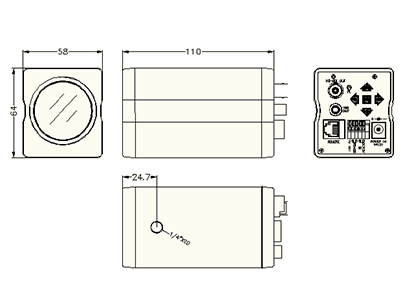

CCD Megapixels HD-SDI AF Zoom Camera

Full HD 1080p /720p HD-SDI(scalling up)
HDV and SDV video out simultaneously
CCD megapixel 16:9 sensor
AF(Auto Focus) camera
Optical Zoom RatioX20 /Digital Zoom RatioX10
Zoom: Optical Zoom 1~20
times: Stepping motor/Digital
Zoom 1~10 times
IR-cut removable control
BLC/D-WDR/MIRROR/FLIP/White Balance -ATW/AWB/R-Y/R-B
OSD
ITS(Intelligent Traffic System)
Video I/F LVDS(YUV422)/HD-SDI/CVBS video out
SERIES NO. MG20S
MAIN FUNCTION Auto Focus CCD Megapixel Zoom module with Electronic PTZ
HDTV mode. :20 times Zoom / SDTV(D1) App. :80 times Zoom
IMAGE SENSOR 1/3-inch Megapixel CCD Sensor (Ex-View)
CCD TOTAL PIXELS 1348(H) x 746(V) (16:9)
SCANNING  SYSTEM Progressive Scan
SYNC  SYSTEM Internal
MINIMUM  ILLUMINATION 0.05 Lux@25 IRE,AGC On , F 1.8, IR Cut
RESOLUTION 800  TV Lines
AF ZOOM LENS F No. :Wide : F 1.6 ,  Tele : F 3.5
Zoom: Optical Zoom 1~20 times: Stepping motor/Digital Zoom 1~10 times
(Optical + Digital Zoom total : 100 times)
VIEW ANGLE: Wide 67.5 °/59.9 °/34.7 ° ; Tele 3.6 °/3.1 °/1.8 °
Auto Focus: Focus range 15cm ~ ∞ at  Wide side at Tele side :  1.0m ~ ∞
LENS IRIS AUTO/FIX
VIDEO OUTPUT Digital Output : HD-SDI or LVDS
Video format: 720P@60/50/,1080p@ 30/25,1080i,@ 60/50
(Progressive/Interlace according to BT1120)
Analog Output NTSC/PAL
S / N  RATIO  52DB (STD) (AGC on ,Weight on )
FIXED SHUTTER NTSC 1/30, 1/50(Flicker-Less), 1/60, 1/100, 1/120, 1/180, 1/350, 1/500, 1/750, 1/1000, 1/2000, 1/4000, 1/10000
PAL 1/25, 1/50, 1/60(Flicker-Less), 1/100, 1/120, 1/180, 1/350, 1/500, 1/750, 1/1000, 1/2000, 1/4000, 1/10000
SIMPLE  ITS  MODE MODE/SHUTTER/PULES OFFSET
NOISE REDUCTION 2D&3D  Noise Reduction (3D: Off/Low/Mid/High)
GAMMA CORRECTION 0.45 (CRT Display) / 0.65 (LCD Display) / 1.0 (STD)
AUTO  EXPOSURE Auto , Fix , IRIS priority
1/30~1/120000(SEC) FOR NTSC,
1/25~1/120000(SEC) FOR PAL
WHITE BALANCE ATW/AWB (ONE PUSH)
COLOR MATRIX TRPE1/TRPE2/ TRPE3
ANALOG VIDEO OUT CVBS NTSC/PAL
AGC On (AFE Fix + 6 DB, Digital AGC+30DB, total 36DB Max)/ Off
WDR Off / On/Auto 1/ Auto 2
D-WDR Off / Low / Mid / High
XDR (EXTENDED WDR) Off / Low / Mid / High
ELECTRICAL SHUTTER SPEED On/Off, 8/1~1/10000s, 21 Steps
BACKLIGHT CONTROL Off/ On
ENHANCEMENT CONTROL 13 Steps
ALARM CONTROL Off/On
POSITION SAVE 64 Positions
FOG REDUCTION Off/Low/Mid/High
ECLIPES CONTROL Off/Low/Mid/High
MOTION DETECTION Area/Sense-Level/Display
PRIVACY MASK 16 Masks
OSD CONTROL SYSTEM English/Japanese/Other
FREEZE Off/On
H/V MIRROR MODE H/V Reverse
TITLE DISPLAY 22 Characters
DAY /NIGHTFUNCTION (ICR) Off/On, Auto
OPERATION  TEMPERATURE -10℃ To 50℃
OPERATIONAL  HUMIDITY Within 80﹪RH
POWER  SUPPLY DC12V±1V / 280mA
Order info.
MHD-63MG20SH-EX-DICR-ITS
