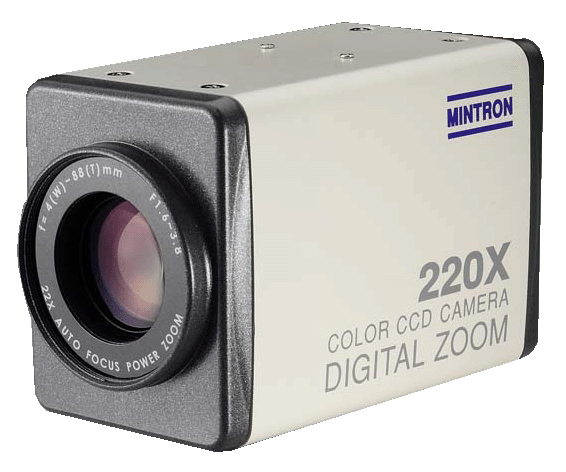

22X optical zoom auto focus camera, smallest in the world
yet most robust with 500,000 times of motor life.
|
MODEL
NO. |
|
MTV-6 |
|||
|
TV
SYSTEM |
NTSC |
PAL |
|||
|
SENSOR |
1/4-inch
CCD Image Sensor |
||||
| CCD TOTAL PIXELS |
542(H) X 493(V) |
537(H) X 597(V) |
|||
|
SCANNING
SYSTEM |
525 lines, 60 fields/sec |
625 lines, 50 fields/sec |
|||
|
SYNC
SYSTEM |
Internal / VD-Lock |
||||
|
MINIMUM |
Legacy
mode |
1 Lux ( F1.6, 5600ºK) 50IRE |
|||
|
Star
light Mode |
0.03 Lux ( F1.6, 5600ºK ) 50IRE |
||||
|
RESOLUTION |
400TVL |
||||
|
WHITE
BALANCE |
Mode |
ATW / AWB / FIX |
|||
|
Range |
|
||||
|
S
/ N RATIO |
48dB ( MIN ) / 52dB ( TYP ) (AGC OFF，r=1，APC OFF，Y-OUT) |
||||
|
B.L.C. FUNCTION |
Super BLC,48 zone BLC |
||||
|
GAMMA CORRECTION |
0.45 /1 |
||||
AGC |
AUTO (18dB max) |
||||
| ALC | AUTO / FIX | ||||
| IMAGE NEGATIVE | Select by OSD menu | ||||
|
CROSS LINE |
ON/OFF Select by OSD menu (position adj. by software) |
||||
|
FREEZE FUNCTION |
Alarm in trigger or Select by OSD |
||||
|
ELECTRONIC SHUTTER |
AES: 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step | ||||
| LENS | 22X optical ZOOM LENS ,F1.6~3.8,f=4.0~88.0mm | ||||
| ZOOM | 220X (22X optical 10Xdigital) | ||||
| FOCUS | Auto / Manual | ||||
| POSITION |
64 Position (Zoom，Focus) |
||||
| VIDEO OUTPUT |
Composite & Y/C output 1.0Vp-p at 75 ohm |
||||
|
CONTROL FUNCTION |
RS-232C/RS-485(selectable) , OSD control |
||||
| OSD LANGUAGE SELECT | ENGLISH / CHINESS_Simp / JAPANESE | ||||
| COMMUNICATION BAUD RATE | 9600 BPS | ||||
| OPERATION TEMPERATURE | -10℃ TO 50℃ | ||||
|
OPERATIONAL HUMIDITY |
within 85﹪RH |
||||
|
POWER SUPPLY |
DC12V±1V / 3.6W(Max) |
||||
|
DIMENSIONS |
120mm(L) X 59mm(W) X 80mm(H) |
||||
|
＊The
specifications and appearance of the product may changed without notice. ＊ATW: Auto tracking white balance. ＊AWC: One push lock white balance. |

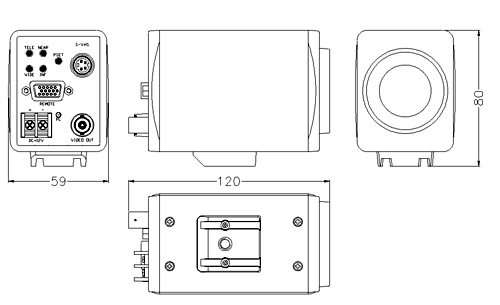

| Dimensions [Unit : mm] |
|
|
