22X optical zoom auto focus camera, smallest in the world
yet most robust with 500,000 times of motor life.
|
MODEL
NO. |
6 |
||||
|
TV
SYSTEM |
NTSC |
PAL |
|||
|
SENSOR |
1/4-inch
CCD Image Sensor |
||||
| CCD
TOTAL PIXELS |
811(H)
X 508(V) |
795(H)
X 596(V) |
|||
|
SCANNING
SYSTEM |
525
lines, 60 fields/sec |
625 lines, 50 fields/sec | |||
|
SYNC
SYSTEM |
Internal |
||||
|
MINIMUM |
Legacy
mode |
1.5 Lux ( F1.2, 5600ºK) |
|||
|
Star
light Mode |
0.02 Lux ( F1.2, 5600ºK ) |
||||
|
RESOLUTION |
480TVL |
||||
|
WHITE
BALANCE |
Mode |
ATW
/ AWC / FIX ( Zero color
rolling) |
|||
|
Range |
3200
~ 10000 ºK (
2200 ~ 15000 ºK with S Filter) |
||||
|
GAIN
CONTROL |
Mode |
AGC
(ON / OFF) |
|||
|
Range |
0
~ 18dB |
||||
|
S
/ N RATIO
|
48dB ( MIN ) / 52dB ( TYP ) (AGC
OFF) |
||||
|
ELECTRONIC
SHUTTER |
1/60~1/120,000sec. |
1/50~1/120,000
sec. |
|||
|
LENS |
22X optical ZOOM LENS ,F1.6~3.7,f=3.7~85.1mm |
||||
ZOOM |
220X ( 22X optical 10X digital) |
||||
| MOTOR |
3 Pcs stepping motor with 500,000 times super long life for Zoom, focus and Iris) |
||||
|
MIRROR
FUNCTION |
ON/OFF |
||||
|
ENHANCE |
ON/OFF |
||||
|
B.L.C.
FUNCTION |
48 zone programmable |
||||
| CONTROL INTERFACE |
Dry switch +/-12V, RS-232 /485 |
||||
|
VIDEO
OUTPUT |
Composite
& Y/C output 1.0V p-p at 75 ohm |
||||
|
GAMMA
CORRECTION |
0.45 |
||||
|
OPERATION
TEMPERATURE |
-20℃
TO 50℃ |
||||
|
OPERATIONAL
HUMIDITY |
within
85﹪RH |
||||
|
POWER SUPPLY |
DC12V±1V
/ 120mA |
||||
| Size ( mm) |
50mm(W) X 60mm(H) X 77mm(D) |
||||
|
＊The
specifications and appearance of the product may changed without notice. ＊ATW: Auto tracking white balance. ＊AWC: One push lock white balance. |
|

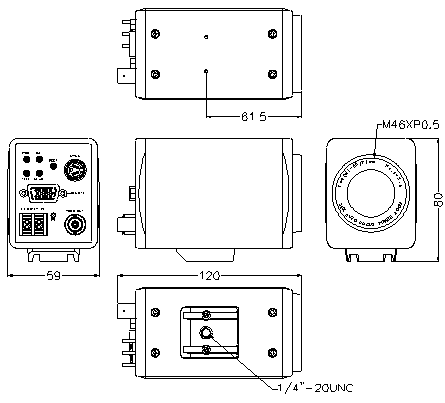

Dimensions [Unit : mm] |
 |
