MODE
NO. |
MTV-54K7 |
|
|
TV SYSTEM |
NTSC |
PAL |
|
SENSOR |
1/4-inch
CCD Image
Sensor |
|
|
CCD
TOTAL PIXELS |
542
(H) x 496 (V) |
542
(H) x 586(V) |
|
SCANNING
SYSTEM |
525
lines, 60 fields/sec |
625
lines, 50 fields/sec |
|
ELECTRONIC
SHUTTER |
1/60~1/120,000
sec. |
1/50~1/120,000
sec. |
|
SYNC
SYSTEM |
Internal |
|
|
MINIMUM
ILLUMINATION |
0.5 Lux F1.2 5600ºK |
|
|
LENS
& VIEW ANGLE |
3.6
mm F2.0 /
68° |
|
|
RESOLUTION |
400 TVL / 470 TVL (Enhanced) |
|
|
S
/ N RATIO
|
52dB
(MIN) / 60dB (TYP) (AGC
OFF) |
|
|
WHITE
BALANCE |
ATW
/ AWC / FIX (Zero
color rolling) |
|
|
WHITE
BALANCE RANGE |
AWC，ATW
( 3200---10000 ºK ) / FIX( 3200ºK ) |
|
| VIDEO
OUTPUT |
1.0V
p-p composite video at 75 ohm |
|
| OSD DISPLAY |
ON SCREEN DISPLAY FOR ALL CONTROL |
|
| 5 PUSH SW |
FOR OSD CONTROL PANEL |
|
|
AUTO
IRIS |
A.E.S. |
|
| FLICKERLESS |
SELECTABLE BY OSD MANUAL |
|
| MIRROR FUNCTION |
SELECTABLE BY OSD MANUAL |
|
| B.L.C. FUNCTION |
SELECTABLE BY OSD MANUAL |
|
| IMAGE ENHANCE |
SELECTABLE BY OSD MANUAL |
|
| DIGITAL ZOOM (2X) |
SELECTABLE BY OSD MANUAL |
|
| NEGATIVE IMAGE |
SELECTABLE BY OSD MANUAL |
|
| GAIN
CONTROL |
AGC-OFF AGC-ON (12dB / 18dB ) (Select by OSD) |
|
| OPERATION
TEMPERATURE |
-20℃ TO 50℃ |
|
| OPERATIONAL
HUMIDITY |
within
85﹪RH |
|
| POWER
SUPPLY |
DC12V±1V / 95mA |
|
|
＊The

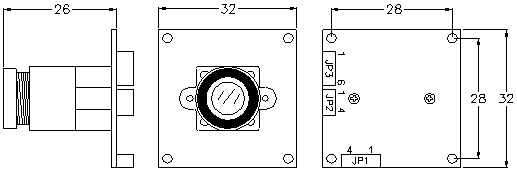

specifications and appearance of the product may changed without notice. ＊ATW: Auto tracking white balance. ＊AWC: One push lock white. Dimension (Unit : mm) |
|
JP1 |
JP3 |
JP2 |
|||
|
1 |
+12V |
1 |
ENTER |
1 |
+3V3 |
|
2 |
GND |
2 |
UP |
2 |
RXD |
|
3 |
VIDEO |
3 |
DOWN |
3 |
TXD |
|
4 |
GND |
4 |
LEFT |
4 |
GND |
|
|
5 |
RIGHT |
|
||
|
6 |
GND |
||||
