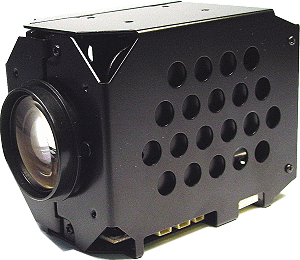

22X optical zoom auto focus camera, smallest in the world
yet most robust with 500,000 times of motor life.
|
MODEL
NO. |
|
|
|||
|
TV
SYSTEM |
NTSC |
PAL |
|||
|
SENSOR |
1/4-inch
CCD Image Sensor |
||||
| CCD TOTAL PIXELS |
811(H) X 508(V) |
795(H)
X 596(V) |
|||
|
SCANNING
SYSTEM |
525 lines, 60 fields/sec |
625 lines, 50 fields/sec |
|||
|
SYNC
SYSTEM |
Internal |
||||
|
MINIMUM |
Legacy
mode |
1.5 Lux ( F1.2, 5600ºK) |
|||
|
Star
light Mode |
0.03 Lux ( F1.2, 5600ºK ) |
||||
|
RESOLUTION |
480 TVL |
||||
|
WHITE
BALANCE |
Mode |
ATW
/ AWC / FIX ( Zero color
rolling) |
|||
|
Range |
|
||||
|
GAIN
CONTROL |
Mode |
AGC
(ON / OFF) |
|||
|
Range |
0
~ 18dB |
||||
|
S
/ N RATIO |
48dB ( MIN ) / 52dB ( TYP ) (AGC OFF¡Ar=1¡AAPC OFF¡AY-OUT) |
||||
|
ELECTRONIC
SHUTTER |
AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step |
||||
|
LENS |
22X optical ZOOM LENS ,F1.6~3.7,f=3.7~85.1mm |
||||
ZOOM |
220X ( 22X optical 10X digital) |
||||
| MOTOR- ZOOM / FOCUS / IRIS |
500,000 times life |
||||
| FOCUS |
Auto / Manual |
||||
|
MIRROR
FUNCTION |
ON/OFF |
||||
|
ENHANCE |
ON/OFF |
||||
| AGC |
AUTO (18dB max) |
||||
|
B.L.C.
FUNCTION |
Super BLC,48 zone BLC |
||||
| ALC |
AUTO / FIX |
||||
 |
Select by OSD menu |
||||
 |
ON/OFF Select by OSD menu (position adj. by software) |
||||
 |
Alarm in trigger or Select by OSD |
||||
| CONTROL INTERFACE |
Dry Switch , RS-232C(Drive option) , OSD control |
||||
|
VIDEO OUTPUT |
Composite & Y/C output 1.0V p-p at 75 ohm |
||||
| POSITION |
64 Position (Zoom¡AFocus) |
||||
| COMMUNICATION BAUD RATE |
9600 BPS |
||||
|
GAMMA CORRECTION |
0.45 |
||||
|
OPERATION TEMPERATURE |
-10¢J TO 50¢J |
||||
|
OPERATIONAL HUMIDITY |
within 85¢MRH |
||||
|
POWER SUPPLY
|
DC12V¡Ó1V / 3.6W(Max) |
||||
| Size ( mm) |
50mm(W) X 60mm(H) X 77mm(D) |
||||
|
¡¯The
specifications and appearance of the product may changed without notice. ¡¯ATW: Auto tracking white balance. ¡¯AWC: One push lock white balance. |

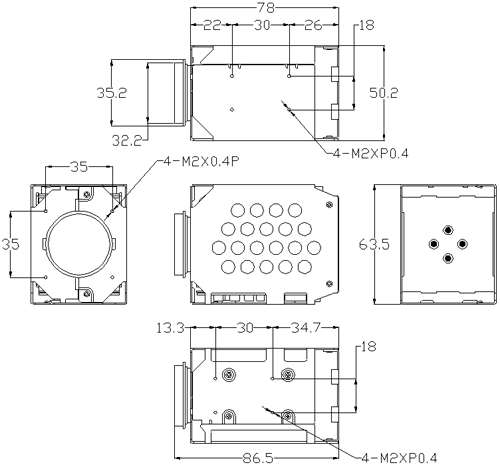

| Dimensions [Unit : mm] |
|
|
