10 X optical zoom auto focus camera, smallest in the world
yet most robust with 500,000 times of motor life.
|
MODEL
NO. |
|
MTV- |
|||
|
TV
SYSTEM |
NTSC |
PAL |
|||
|
SENSOR |
1/4-inch
CCD Image Sensor |
||||
| CCD TOTAL PIXELS | ~ 410K | ~ 470K | |||
|
SCANNING
SYSTEM |
525 lines, 60 fields/sec |
625 lines, 50 fields/sec |
|||
|
SYNC
SYSTEM |
Internal / External(VD-Lock / ±1Hz) |
||||
|
MINIMUM |
Legacy
mode |
2.5 Lux F1.8 |
|||
|
Star
light Mode |
0.07 Lux F1.8 |
||||
|
RESOLUTION |
520TVL |
||||
|
S
/ N RATIO |
46dB ( MIN ) / 50dB ( TYP ) (AGC OFF，r=1，APC OFF，Y-OUT) |
||||
|
WHITE
BALANCE |
Mode |
AUTO (ATW or AWB) |
|||
|
Range |
|
||||
|
B.L.C. FUNCTION |
ON/OFF |
||||
|
GAMMA CORRECTION |
0.45 /1 |
||||
AGC |
AUTO (24dB max |
||||
| ALC | AUTO / FIX | ||||
| IMAGE NEGATIVE | Select by OSD menu | ||||
| MONITION DETECT | 48 zone (select by OSD) | ||||
|
CROSS LINE |
ON/OFF Select by OSD menu (position adj. by software) |
||||
|
FREEZE FUNCTION |
Alarm in trigger or Select by OSD |
||||
|
ELECTRONIC SHUTTER |
AES : 1/60(1/50) ~ 1/120,000 sec. / MANU : 8 step | ||||
| LENS | 10X optical ZOOM LENS，F1.8~2.9，f=4.2~42.0mm | ||||
| ZOOM | 100X (10X optical 10X Digital) | ||||
| FOCUS | Auto / Manual | ||||
| POSITION |
64 Position (Zoom，Focus) |
||||
| VIDEO OUTPUT |
Composite & Y/C output 1.0Vp-p at 75 ohm |
||||
| Digital output 8bit YUV4:2:2 | |||||
|
CONTROL FUNCTION |
Programmable RS-232 and RS-485 (*Driver Option) * RS-485 will be standard offer if not indicate one of driver options when Order. |
||||
| OSD CONTROL | Zoom, Focus, IRIS, WB, AGC, Position, C-Gain, APC Gain | ||||
| OSD LANGUAGE SELECT | ENGLISH / CHINESS_Simp / JAPANESE | ||||
| OPERATION TEMPERATURE | -10℃ TO 50℃ | ||||
|
OPERATIONAL HUMIDITY |
within 85%RH |
||||
|
POWER SUPPLY |
DC12V±1V / 3.6W(Max) |
||||
|
＊The
specifications and appearance of the product may changed without notice. ＊ATW: Auto tracking white balance. ＊AWC: One push lock white balance. |

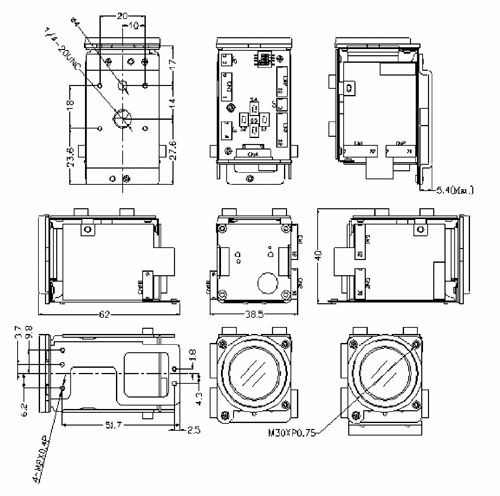

| Dimensions [Unit : mm] |
|
|
