MODEL
NO. |
34K0 |
|
|
TV SYSTEM |
NTSC |
PAL |
|
SENSOR |
1/4-inch
CCD Image
Sensor |
|
|
CCD
TOTAL PIXELS |
542
(H) x 496 (V) |
542
(H) x 586(V) |
|
SCANNING
SYSTEM |
525
lines, 60 fields/sec |
625
lines, 50 fields/sec |
|
SYNC
SYSTEM |
Internal |
|
|
MINIMUM
ILLUMINATION |
0.5
Lux F1.2 5600ºK |
|
|
RESOLUTION |
400
TVL / 470 TVL (Enhanced) |
|
|
S
/ N RATIO
|
52dB
(MIN) / 60dB (TYP) (AGC
OFF) |
|
|
WHITE
BALANCE |
Auto
high speed White Balance (Zero color rolling) ATW / FIX / AWC |
|
|
WHITE
BALANCE RANGE |
2200 –15000 ºK with S Filter 3200---10000 ºK with normal Filter |
|
|
AUTO
IRIS |
A.E.S. |
|
|
ELECTRONIC
SHUTTER |
1/60~1/120,000
sec. |
1/50~1/120,000
sec. |
|
VIDEO
OUTPUT |
1.0V
p-p composite video at 75 ohm |
|
|
GAMMA
CORRECTION |
0.45 |
|
|
MIRROR
FUNCTION |
ON / OFF Switch | |
|
DIGITAL
ZOOM ( 2X ) |
ON / OFF Switch | |
|
GAIN CONTROL |
AGC |
|
|
OPERATION
TEMPERATURE |
-20℃ TO 50℃ |
|
|
OPERATIONAL
HUMIDITY |
within
85﹪RH |
|
|
POWER
SUPPLY |
DC12V
/ 80mA |
|
|
＊The

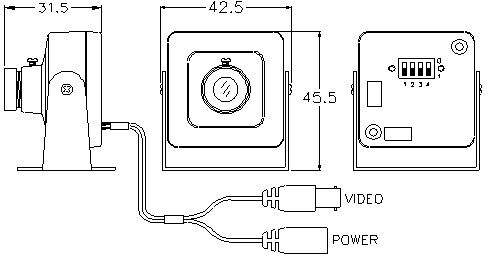

specifications and appearance of the product may changed without notice. ＊ATW: Auto tracking white balance. ＊AWC: One push lock white balance. Dimension (Unit : mm) |
|
FUNCTION SW |
|
|
SW1 |
ATW
/ FIX |
|
SW2 |
ATW
/ AWB |
|
SW3 |
MIRROR |
|
SW4 |
ZOOM |
